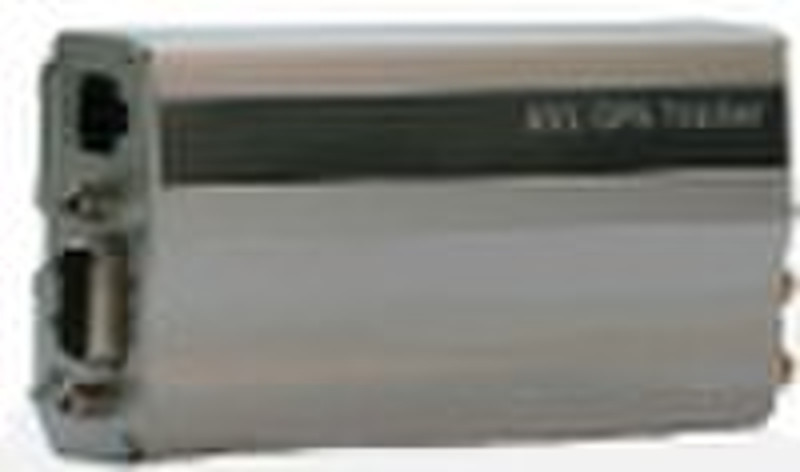

AVL GPS Tracker

Specifications/Special Features: Powerful GPS locator which is designed for vehicle tracking application With superior receiving sensitivity, fast TTFF and GSM frequencies 850/900/1800/1900MHz, it’s location can be real time or schedule tracked by a backend server or specified terminals GV100 has multiple input/output interfaces which can be used for monitoring and controlling Base on the integrated at track protocol GV100 can communicate with the backend server through GPRS/GSM network, transfer reports of emergency, geofencing, lower power and scheduled GPS position, and more User can also use GV100 to monitor the status of vehicle and control the vehicle with relay output Service provider can easy to setup their tracking system base on the functional at track protocol Advantages: Wide operation voltage from 8 to 32V DC Built-in MTK GPS chipset with -165dBm tracking sensitivity, -147dBm autonomous sensitivity which bring fast TTFF and high accuracy Low power consumption Long standby time with internal battery A-GPS ready solution Quad band GSM/GPRS frequency Embedded functional at track protocol Multiple input/output interfaces for monitoring and controlling Built-in 3G motion sensor for power saving and motion detect GSM specifications: Frequency: Quad band: 850/900/1800/1900MHz Compliant to GSM phase 2/2+: Class 4 (2W at 850/900MHz) Class 1 (1W at 1800/1900MHz) GPRS: GPRS multi-slot class 12 GPRS mobile station class B RMS phase error: ≤5deg Maximum out RF power: 33.0dBm±2dBm Dynamic input range: -15 to -102dBm Receiving delicacy: class II RBER ≤2% (-102dBm) Stability of frequency: superior to 2.5ppm Maximum frequency error: ±0.1ppm GPS specifications: GPS chipset: MTK all-in-one GPS receiver sensitive, fast and accurate Sensitivity: Autonomous acquisition: -148dBm Hot start: -60dBm Tracking: -65dBm Position accuracy without aid: 3.0m 2D-RMS DGPS: 2.5m AGPS: A-GPS ready solution
